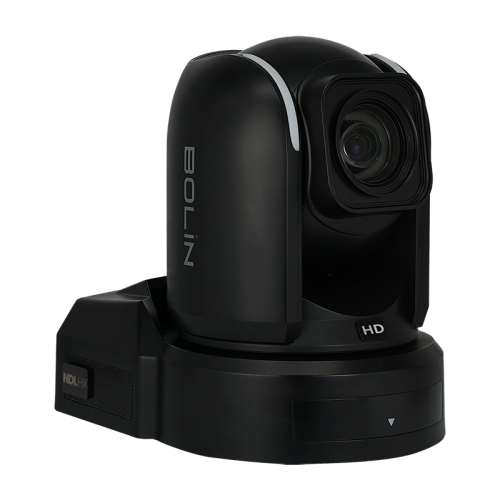

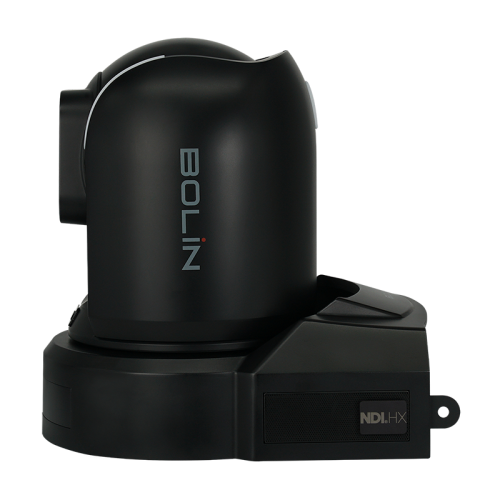

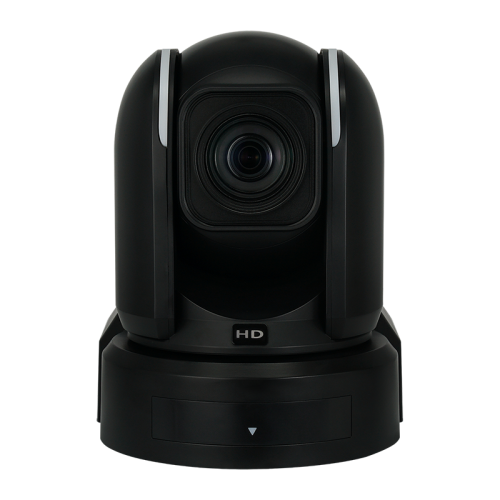

R9 Series FHD PTZ Camera R9-230NX NDI 이미지 확대 보기
  • R9 Series FHD PTZ Camera R9-230NX NDI
  • R9 Series FHD PTZ Camera R9-230NX NDI
  • R9 Series FHD PTZ Camera R9-230NX NDI
  • R9 Series FHD PTZ Camera R9-230NX NDI
  • R9 Series FHD PTZ Camera R9-230NX NDI

Bolin NDI LineProduct

R9 Series FHD PTZ Camera R9-230NX
공유
짧은설명
1/1.8 type Sony 417만화소
1080P60ㅣ30배줌
SDIㅣHDMIㅣIPㅣPOEㅣNDI
판매가
가격 문의
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
2,500원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 서울특별시 강서구 양천로 400-12 (더리브골드타워) 11층 1114호
상품코드
1000000041
모델명

NDI

R9-230NX
브랜드
BOLIN
제조사
BOLIN

NDI CERTIFIED

Interoperability ■ Low Latency ■ High Quality

NDI HX3

NDI Embedded Bridge

NDI 6 READY

OUTPUT

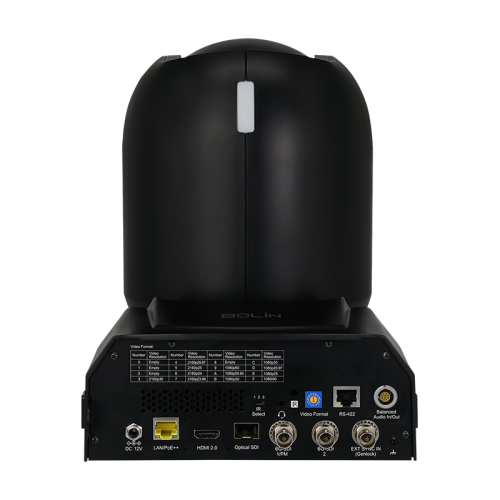

Table full of spicesR9 Back View

    • SKU & OUTPUTs

      SKU & OUTPUTs-4-1200

    PTZ

    • PTZ Movement-Smooth, Accurate and Quiet

      • PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 100°/s
      • TILT: 210° (-90° to +120°); Fully proportional, speed 0.05° to 50°/s
      • Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
      • Picture Profile Preset
      • Motionless Preset
      • PTZ Trace Memory
      • Quietness less than NC35
      • Smooth and Accurate Movement
      • FreeD protocol for virtual reality production system (Via FW Upgrade)

    특징

      • On-screen character generator
      • All firmware upgrade via IP

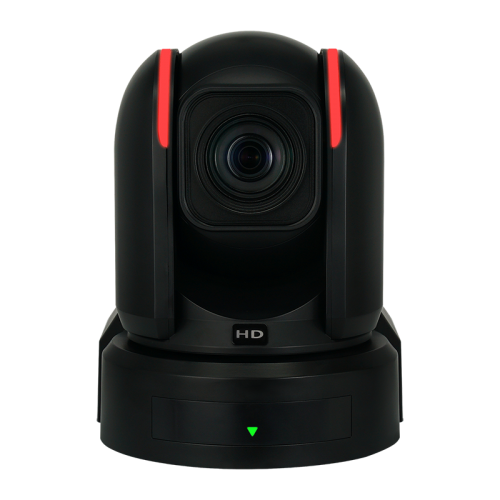

      • Front and rear Tally Light
      • POE++ and 12VDC/AC
      • Built-in handle
      • Genlock
      • HDMI cable secure mount
      • Available Color: Black, White

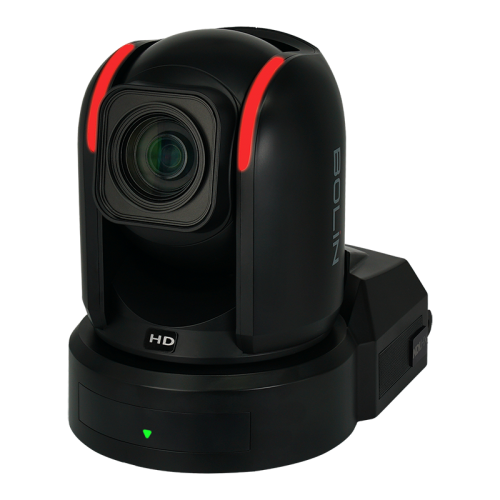

      R9 Tally Light-1-400

    Specification

    R9-230H


    IMAGE FULL HD, 30X
    Image MakerSony
    Image SensorCMOS image sensor 1/1.8 type STARVIS 2 sensor
    Number of effective pixels2712 x 1538, 4.17M [pixels]
    Picture elements2688 x 1520, 4.09M [pixels]
    LensEnhanced optical zoom 30X
    Tele Convert Mode-
    Digital Zoom12X
    Horizontal Angle of View58.1˚ (Wide) - 2.3˚ (Tele),
    Vertical Angle of View34.9˚ (Wide) - 1.7˚ (Tele),
    Focal Lengthf= 6.5 mm (WIDE) to 162.5 mm (TELE)
    Min. object distance100mm (Wide), 1200mm (Tele)
    ApertureF1.6 (Wide) to F4.8 (Tele), 16 steps
    Min. IlluminationICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
    Shutter Speed1/1 sec to 1/10000 sec (22 steps)
    FocusSpot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance
    White BalanceAuto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto
    ExposureFull Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation
    FeaturesHigh Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
    WDRYes
    ND Filter-
    Image StabilizerYes, Super, Super+
    Color GainYes (15 step)
    Color HueYes (15 step)
    GammaStandard / Straight gamma
    Gamma Level-
    Black Level-
    Black Gamma-
    Color Matrix-
    Noise ReductionOn/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
    S/N Ratio≥50db
    HLCYes
    E-FlipYes
    Privacy Zone MaskingYes
    DefogYes, (off, low, mid, high)
    High SensitivityYes
    Slow AE ResponseYes
    Day/NightYes
    Backlight CompensationYes
    Low Latency ModeYes
    AI Face Detection Focus-
    AI Face Auto Exposure-
    Scene Style-
    Focus Zone-


    MECHANICAL

    Pan MovementPAN: 340° (-170° to +170°); Fully proportional 0.05° to 100°/s
    Tilt MovementTILT: 120° (-30° to +90°); Fully proportional 0.05° to 75°/s
    Speed ProportionalPan/Tilt Speed proportional to zoom range
    Preset Position255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.1°
    Preset MemoryPicture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
    Motionless PresetYES, ON/OFF
    PTZ Trace MemoryYES, 12
    CruiseYES, 4
    QuietnessNC35 Compliant
    Home PositionYes
    FreeDYes, FreeD protocol for AR/VR camera tracking, via serial control/IP (Via fw upgrade)
    EnvironmentalIndoor, IP65

    INTERFACE
    HDMI Video OutputHDMI 2.0 Type A
    SDI Video Output3G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M standards, 75Ω BNC x 2，SDI/PM for output to has OSD display
    SDI Optical Fiber OutputAOptical 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
    BLaser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
    Network LAN PortRJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
    Synchronization SystemInternal/External synchronization (BBS/Tri-level sync)
    External Sync InputGenlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
    Audio InputABalanced XLR (Hirose Connector via Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power
    B3.5mm TRRS for bidirection audio intercom
    Audio OutputABalanced XLR (Hirose Connectorvia Atomos 10-Pin LEMO Type to XLR Breakout Cable), embedded with HDMI, SDI, USB and IP
    B3.5mm TRRS for bidirection audio intercom
    Edge Storage-
    Tally LightRed, Green Color/Front and Rear
    Dip SwitchVideo Resolution Dip Switch x1
    System Firmware UpgradeUpgrade via IP for camera system MCU, Driver, FPGA and Encoder
    Power Connector TypeAINPUT: DC12V, connect with screw secure (Type - 5.5mm×2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter)
    AINPUT: RJ45, PoE++ (IEEE802.3bt)
    Control InterfaceRJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
    Control Protocol

    Serial: VISCA, PELCO P/D; IP: VISCA Over IP, ONVIF; FreeD (via Hw Upgrade)

    HDMI VIDEO SIGNAL SYSTEM

    HDMI Video Format1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    Color Precision12bit(HDMI), YUV4:2:2, YUV4:2:0
    Color SpaceYUV、RGB
    OSD Menu DisplayYes, with image insert
    On-Screen TitleYes, video embedded On-Screen title character generator


    SDI SIGNAL FORMAT

    SDI Video Format1920 x 1080/59.94p/60p 1920 x 1080/59.94i/60i 1920 x 1080/50p 1920 x 1080/50i 1920 x 1080/29.97p/30p 1920 x 1080/25p 1920 x 1080/23.98p/24p 1280 x 720/59.94p/60p 1280 x 720/50p
    Color Precision10bit(SDI), YUV 4:2:2
    Color SpaceYUV
    StandardSMPTE 292M ，SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M，SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s) standard / 75 Ω (BNC x 1), With SMPTE352 SDI Metadata Supported
    True Dule OutputHDMI and SDI signal can be output with different format
    OSD Menu DisplayYes
    On-Screen TitleYes, video embedded On-Screen title character generator


    USB SIGNAL FORMAT

    USB PortUSB 2.0 Type-C
    EncoderH.264, MJPEG
    USB Video Format1920x1080p60/50/30/25 1280x720p60/50
    Compatible IntegrationUVC, UAC


    NETWORK

    CodecHEVC
    Video Compression (Codec)MJPEG,H.264/H.265 by SoC
    IP Resolution/Frame Rate1920x1080p60/50/30/25, 1280x720p60/50
    True Dule OutputIP, HDMI, and SDI signal can be set with different format
    IP ProtocolsTCP/IP, ICMP, ARP, RTP, UDP, HTTP, DNS, DHCP, FTP, NTP，SRT
    Application ProtocolsRTMP(S)、RTSP、 RTSP Encryption、SRT、MP2TS over UDP (Unicast, Multicast)
    Color Format-
    Multi-stream3 stream
    Audio CompressionAAC-LC,G.711A/G.711U Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
    OSDCustomized OSD
    Compatible IntegrationONVIF2.4 (Profile S), VISCA Over IP
    Bandwidth ( results may vary depending on network configuration and management settings.)2Mbps, 1080p60
    Latency (Overall latency may increase depending on network configurations)10 frame (e.g. 1080p60 latency is < 170ms glass to glass
    Browser SupportCross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari


    GENERAL

    Operating Temperature–10 °C to 50 °C（14°F to 122°F)
    Operating Humidity≤80% Suitable for Use (no condensation)
    Power InputDC12V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
    Power ConsumptionMin: 29W (Static state with no movement) Max: 40W（Fully loaded operation）
    Installation MethodStand-alone (Upright) or suspended (Pendent) or Tripod
    MountCeiling mount, Wall mount, Tripod
    HandleBuilt-in for portable use application
    Size of Tripod Screw Hole1 x 1/4” safety bond point
    Body ColorBlack, White
    Dimension-Camera201*253*249mm(W*D*H), 201*253*256(with feet mats)
    Net Weight3.8kg (8.36lb)
    Accessories IncludedIR Remote controller x1, Power adapter and power cord (US, EU, UK), Mounting screws x3, RJ45 to RS422 Extension cable, Thanks card x1
    Accessories OptionalAWall mount bracket
    BCeiling mount bracket
    CQuick mounting plate
    DTripod mount adaptor
    ECable Connection Junction Box
    FStabilizer Platform
