PTZ 카메라

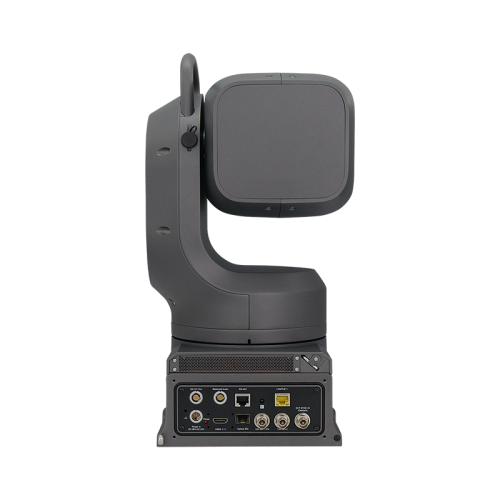

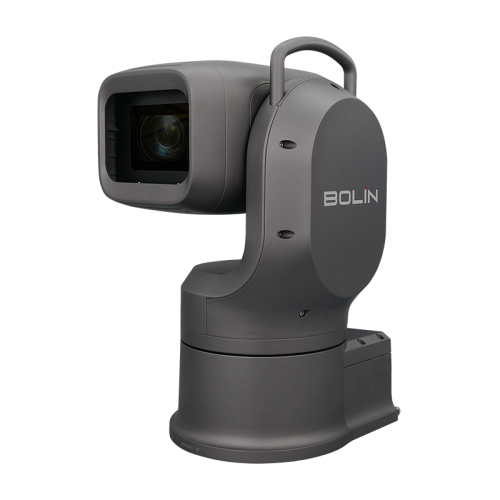

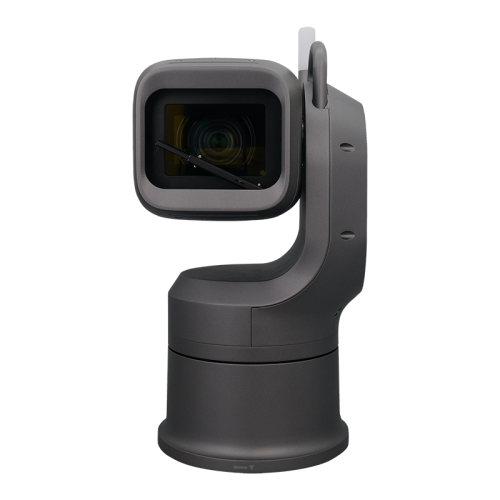

Outdoor 4K PTZ Camera EXU420F 이미지 확대 보기
  • Outdoor 4K PTZ Camera EXU420F
  • Outdoor 4K PTZ Camera EXU420F
  • Outdoor 4K PTZ Camera EXU420F

Bolin EXU LineProduct

Outdoor 4K PTZ Camera EXU420F
공유
짧은설명
1/2.8 type Sony 829만화소
2160P60ㅣ20배줌
12G-SDIㅣHDMIㅣIPㅣPOE
판매가
가격 문의
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
2,500원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 서울특별시 강서구 양천로 400-12 (더리브골드타워) 11층 1114호
상품코드
1000000038
모델명
EXU420F
브랜드
BOLIN
제조사
BOLIN


OVERVIEW

  • 극한의 환경을 견딜 수 있도록 설계된 EXU230H의 IP67 등급 하우징은 먼지, 물, 온도 변화로부터 완벽하게 보호하여 비, 눈, 직사광선에서도 중단 없이 작동할 수 있도록 합니다. 본체는 내염성 코팅 처리되어 해양 또는 해안 지역에서 사용하기에 적합합니다. 3G-SDI, HDMI, 광섬유, IP 스트리밍 등 다양한 출력 옵션을 제공하여 프로덕션 워크플로우에 손쉽게 통합할 수 있습니다. 다양한 스트리밍 프로토콜을 지원하여 유연하고 안정적인 비디오 전송을 보장합니다. 멀티 카메라 설정에서 정밀한 동기화를 위해 젠록(Genlock) 입력을 제공하여 복잡한 프로덕션 환경에서도 프레임 정확도를 보장합니다. 또한, FreeD 프로토콜 지원을 통해 실시간 추적이 가능합니다.

    With its robust construction, exceptional imaging performance, and flexible connectivity options, the Bolin EXU230H is the ideal solution for capturing high-quality video in any outdoor environment.


  • EXU230H 저조도 전문 실외 PTZ 카메라는 소니의 최신 컬러 카메라 블록을 탑재하여 800만 화소 초고해상도 렌즈, 400만 화소 이미지 센서(1/1.8 타입), 그리고 ISP를 채택하여 더욱 향상된 가시성을 제공합니다. 이 세 가지 핵심 기술의 결합은 압도적인 해상력을 제공하며, 향상된 AF/AE/AWB 기능은 저조도 환경에서도 충실한 이미지를 재현합니다

OUTPUT

Table full of spices

IP STREAMING

      • H.264/265 - AVC/HEVC
      • SoC Software based encoder built-in
      • Browser, software and hardware decode-able
      • Up to 1080P60, Full HD
      • Three Streaming
      • Unicast, Multicast
      • RTSP, RTMP, RTMPS., SRT, ONVIF
      • IP control: Visca Over IP, Onvif
      • Audio encode
      • Open platform

PTZ

  • FreeD Protocol Integrated for VR/AR Video Production

      • FreeD(Free Dimensional Video)는 몰입형 3차원 비디오 콘텐츠의 캡처 및 렌더링을 지원하는 프로토콜입니다. 특히 베이스밴드 비디오 피드를 사용하는 가상 라이브 비디오 제작과 Bolin PTZ 카메라를 사용하는 초저지연 AV Over IP 스트리밍에 유용합니다. 이 기능은 날씨, 스포츠, 뉴스, 라이브 이벤트 등의 애플리케이션에 널리 활용될 수 있습니다.

    Bolin's EXU Series outdoor PTZ camera FreeD integration

FEATURES

      • On-screen character generator
      • All firmware upgrade via IP
      • Tally Light
      • POE++ and 36VDC/24VAC
      • Power Output: 12VDC
      • Available Color: Dark Gray, White
      • NDAA Compliant
    Bolin EXU Series outdoor PTZ camera with IP67 rear cover, cable concealment cover, and safety cable mounted upright on the wall mount bracket ES-WM

RUGGED & DURABLE

      • Wind Load Durability, steady operational and  non-destructive at 30-60 m/s or less
      • Heater, Defroster built-in
      • –40 °C to 60 °C (-40°F to 140°F) operational
    Website-3rd Images – 16



Image MakerBolin
Image Sensor IMX715, CMOS image sensor 1/2.8 type
Number of effective pixels8.29MP, 8.29 MP
Picture elements3840x2160
Lens20X
Digital Zoom16X
Horizontal Angle of View78.59° (W)~4.92° (T)
Vertical Angle of View48.39° (W)~2.79° (T)
Focal Lengthf= 3.55 mm (WIDE) to 71 mm (TELE)
Min. object distance10cm
ApertureF2.0 (Wide) to F3.8 (Tele)
Min. Illumination 0.5lux（color），0.1lux（black）
Shutter Speed1/60-1/100k sec (21steps)
FocusAuto, Push, Manual
White Balance Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL
ExposureAuto, Manual, Shutter, Iris priority
FeaturesBacklight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, SHARPNESS
WDR120db
Color GainYes
Color HueYes
GammaYes
Gamma Level0-4
Color Matrix-
Noise Reduction2D / 3D (level 0 to 100)
S/N Ratio≥50db
E-FlipYes
DefogYes
Day/Night Yes
Backlight CompensationYes
AI Face Detection FocusYes
AI Face Auto ExposureYes
Scene StyleStandard, Bright, Clarity, Soft
Focus ZoneFace Priority, All Area, Top/Central/Bottom
Pan MovementPAN: 340° (-170° to +170°); Fully proportional 0.08° to 60°/s
Tilt MovementTILT: 205° (-35° to +170°); Fully proportional 0.08° to 60°/s
Speed ProportionalPan/Tilt Speed proportional to zoom range
Preset Position 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset MemoryPicture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless PresetYES, ON/OFF
PTZ Trace MemoryYES, 4
CruiseYES, 12
QuietnessNC55(45/35) or less when operating speed is 60°/30°/15°/sec or less
Home Position Yes
FreeD Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation CorrectionOptical
Turning RadiusPAN: Φ 400 mm TILT: Φ 480 mm
EnvironmentalOutdoor, IP67 compliant for Waterproof and Dust Proof
Body FinishingC5 Corrosion Resistant Power Coating
Wind Load Durability0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 60m/s or less
WiperYes
HeaterYes
DefrosterYes
HDMI Video Output HDMI 2.0 Type A
SDI Video Output12G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber OutputOptical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN PortRJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control, IP video output, IP audio output, System FW Upgrade
Synchronization SystemInternal/External synchronization (BBS/Tri-level sync)
External Sync Input Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input• 2 channels, XLR balanced input (Mini XLR - Hirose Connector) with 48V Phantom power
• Input signal level: 0 dBu, • Volume variable range: –40 dB to +12 dB (can be changed in 1 dB steps in the menu)
Audio Output*2 channels, XLR balanced output (Mini XLR - Hirose Connector) (preserve); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo
superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) • Quantization bit rate: 24-bit (LPCM) • Audio compression format (IP): AAC-LC (High quality)
Tally Light Red, Green Color, Front
System Firmware UpgradeUpgrade via IP for camera system MCU, FPGA and Encoder
Power Connector TypeINPUT: DC36V/AC24A,Pin connector
INPUT: RJ45, PoE++ (IEEE802.3bt)
OUTPUT: 12VDC, Pin connector
Control InterfaceRJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control ProtocolSerial: VISCA, PELCO P/D, FreeD; IP: VISCA Over IP, ONVIF
HDMI Video Format3840x2160P 60/59.94/50/30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision12bit(HDMI), YUV4:2:2
Color SpaceYUV、RGB
OSD Menu DisplayYes
On-Screen TitleYes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream
SDI Video Output12G-SDI
SDI Video Format3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision10bit(SDI), YUV 4:2:2
Color SpaceYUV
StandardSMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s) with SMPTE352 SDI Metadata Supported
True Dual OutputHDMI and SDI signal can be output with different format
OSD Menu DisplayYes
On-Screen TitleYes, video embedded On-Screen title character generator
Video CompressionAVC-H.264/HEVC-H.265/MJPEG by FPGA
IP Resolution/Frame Rate 3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
True Dual OutputIP, HDMI, and SDI signal can be set with different format
IP ProtocolsTCP/IP, IGMP, ICMP, ARP, QoS, SNMP, UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT
Application ProtocolsRTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
Color FormatYUV4:2:0 8bit、YUV4:2:2 8bit、YUV4:2:2 10bit
Multi-stream 2 stream
Audio Compression32-128Kbps(AAC-LC) Selectable
OSDCustomized OSD
Compatible IntegrationONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.)128Kbps-60Mbps, 4kp60 12 bit 4:2:2
10-20Mbps, 1080p60 12 bit 4:2:2
Latency (Overall latency may increase depending on network configurations)2-3 frame (e.g. 2160p60 latency is < 120ms glass to glass
Browser SupportCross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari
Operating Temperature –40 °C to 60 °C（-40°F to 140°F), (PoE is not suggested to be used and camera preheating automatically will be processed when is at environment -10°C (-14°F) or less)
Operating Humidity 100% Suitable for Use (no condensation)
Power InputDC 36V / AC24V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
IP ProtocolsSuggest that not to use POE when environment temperature is -0°C or lower
Power ConsumptionMin: 35W(Static state with no movement); Max: 85W（Fully loaded operation with heater on, PoE power is not suggested）
Installation MethodStand-alone (Upright) or suspended (Pendent), • To ensure safety, the unit must be secured using the mount bracket supplied.
Mount Ceiling Mount, Wall Mount, Heavy duty tripod
HandleBuilt-in for portable use application
WiperYes, hidden type
Size of Tripod Screw Hole 1 x 3/8”, 1 x 1/4” + secure lock point
Body ColorDark Gray
Dimension-CameraPAN: Φ 400 mm TILT: Φ 480 mm
Weight10kg（22lb)
Accessories IncludedIR Controllerx1, Secure Chain Lock and screwx1, Power Adaptor x1, Seal ringx12, Quick install panel bolt x4, IP67 Tail Cover x1, Rainwater Cover x1
CertificateCE, FCC, IC, UKCA, ROHS, WEEE
